Model MIL Liquid Sampler
Get Started
Request A QuoteStill Have Questions?

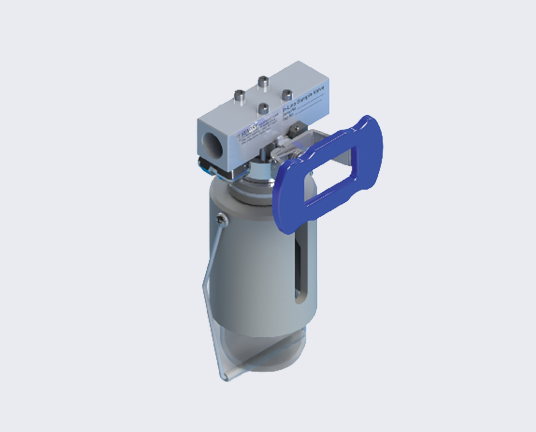

Contact UsThe Model MIL Liquid Sampler uses a close-coupled ball valve to extract samples from in-line petrochemical, refining, and nuclear process piping. This liquid sampler creates a low dead volume in the sample flow area, ensuring representative sampling and a clear sample stream.
In addition to sample integrity, the low-e liquid sampler ensures operator safety through a side-discharge dual needle assembly, adjustable throttle stop, and spring-loaded throttling valve, ensuring operators can close the line quickly without accidental spillage or contamination.
- The MIL sampler comes available with a variety of configurations to ensure that it meets your application needs.
- Extra safety is available with an optional enclosure.
Materials
- Each MIL sampler is made of a 316 stainless steel body, FKM or FFKM O-Rings, and PTFE-Teflon (non-nuclear use) or PEEK (nuclear use) ball valve sets.
- A nylon bottle shroud is also included that can fit bottles up to 32 ounces (1000 ml).
Pressure
- This low-e liquid sampler can manage pressures of up to 2200 PSI at 100˚ F (150 bar at 38˚ C).
- Flange end connections have lower pressure ratings - contact us to learn more.
Temperature
- The Model MIL is temperature-rated for up to 450˚ F at 100 PSI (232˚ C at 7 bar).
Additional Capabilities
- Each sampler is highly customizable with various end connections and bottle options to meet your application.
