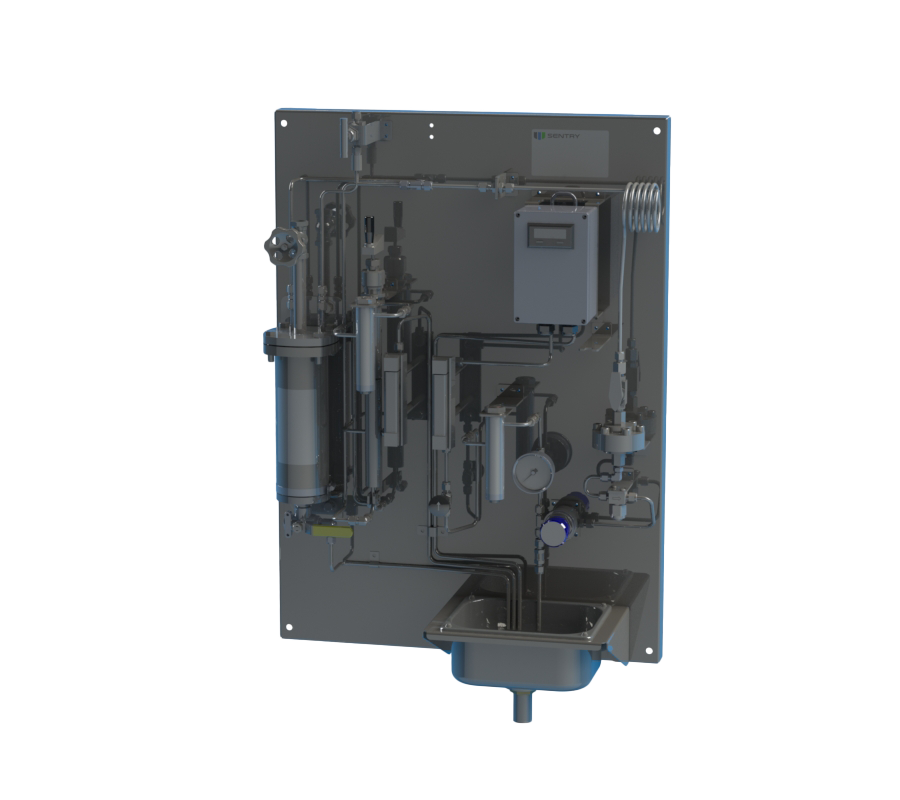

Corrosion Product Sampler (CPS)
Get Started
Request A QuoteStill Have Questions?
Contact UsExtensive corrosion can cause issues and even downtime in your plant. Avoid a shutdown with a Corrosion Product Sampler from Sentry Equipment.
The CPS provides operators the ability to collect samples to identify the cause of corrosion, track corrosion development, and measure the effectiveness of your corrosion treatment. It does this through easy-to-use, high-pressure filters and a digital flow meter designed for accuracy, even at low flow rates.
- Our Corrosion Protection Sampler is built with an optional three-month battery and compact dimensions or 100-240 VAC connection.
- A combination of cation and anion filters ensures you are able to identify corrosive materials in your process.
- Made of stainless steel and Vitron, the CPS can handle temperatures up to 131°F (55°C) and flow rates up to 500 cc/min.
- A variety of applicable options are available such as panel mount, a speed loop, sample cooling, and pressure reduction prior to sample.
- Meets ASTM D6301 compliance standard
Temperature Rating
- Without a sample cooler:
- 131˚F (55˚C)
- With a sample cooler:
- 1000˚F (538˚C)
Pressure Rating
- Standard rating up to 2850 PSI (197 bar)
- Contact us for higher pressure rating options
Material
- Wetted materials include 316 stainless steel, PTFE, and Viton

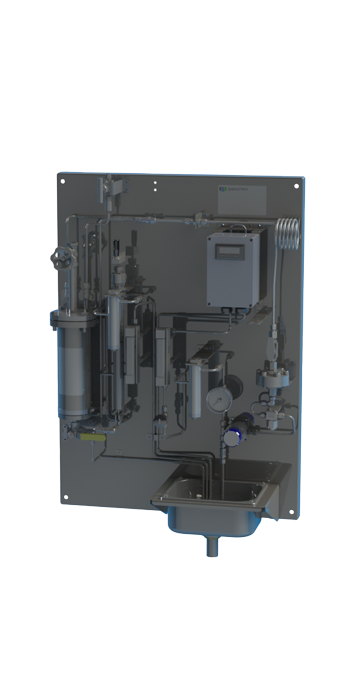

Standard Panel
- 26 in (66.04 cm) Width
- 36 in (91.44 cm) Height
- 10.5 in (26.67 cm) Depth

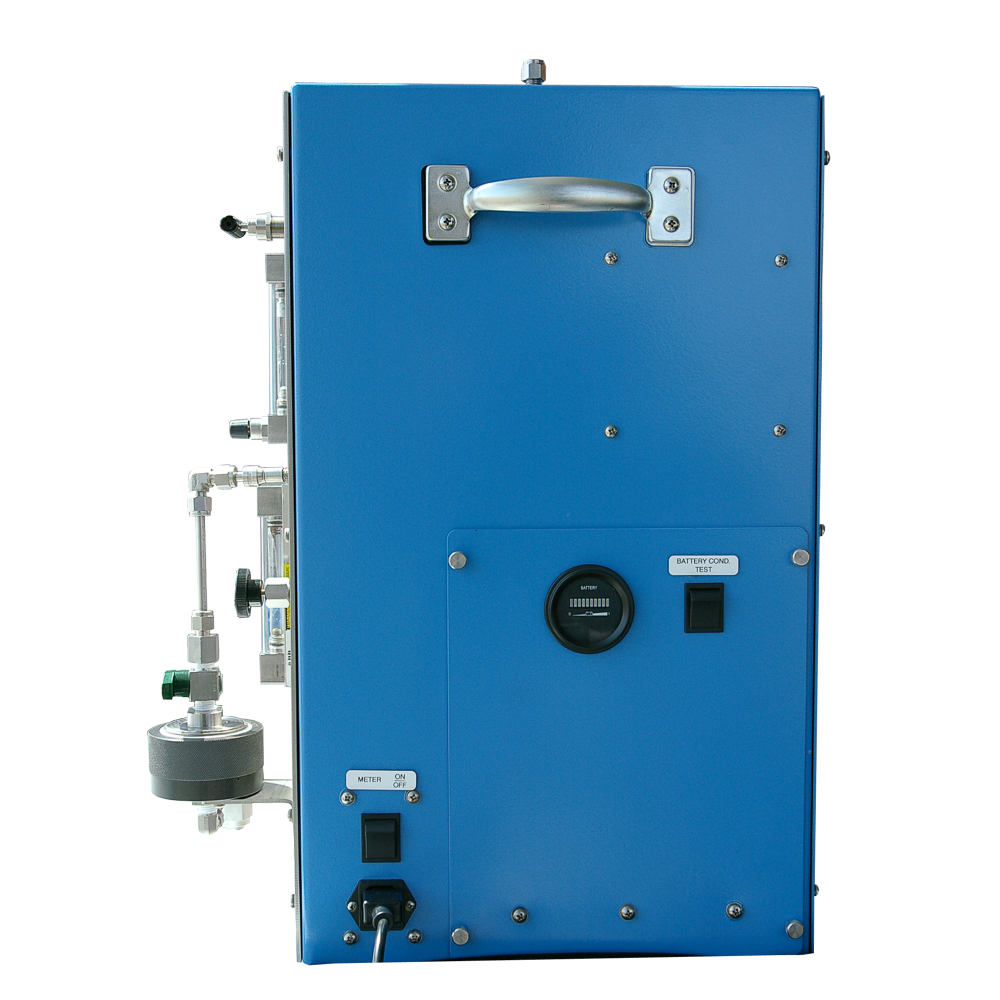

Mobile Batter Powered Panel
- 12 in (30.5 cm) Width
- 13 in (33 cm) Height
- 13 in (33 cm) Depth
Related Resources
Learn more about how the Corrosion Product Sampler can benefit your application with the following resources.
.png?height=430&width=285&rmode=crop&ranchor=center&format=webp)
Spec Sheets

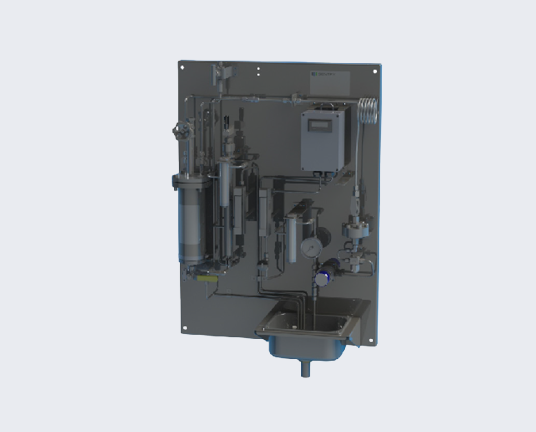

Mounted CPS Spec Sheet
Spec Sheets
CPS Spec Sheet
Instruction Manuals
CPS Instruction Manual
